STADIUM LED DISPLAYS
300×213
P10 Perimeter sports stadium LED Display
  PDF:
Features

1.  Convenient to install and disassemble
Our cabinets feature simple designs, making them easy-to-install and disassemble. The cabinets include interlo-cks, as well as external signal and power sockets.

2. Adjustable inclination angle
Generally, the LED perimeter banner display is placed vertically and the inclination angle is adjustable for the best possible viewing and camera shooting angles.



3. Automatic backup system
Our LED displays could utilize two computers to ensure interruption-free display of images and videos. For instance, if one unit was to turn off due to technical issues, the other unit will automati-cally act as a backup solution.

4. All weather designs
With an IP65 rating, our cabinets offer ventilation and protection from rain or water damage.

5.  High refresh rates
With high refresh rates, our products can display flicker-free video images-including live video feeds.

6.  Stability
a.) Connectors for power cables ensure stability of the power supply and voltage.
b.) Our Swiss-made cable connectors guarantee perfect signal communication.

7. Impact resistance
Specially designed soft module masks on our pro-ducts protect players from injury and offers prote-ction to the unit itself.

8. Software
Specialized sports software is designed for edit-ing and playing advertisement content.

Specification
Model No. P10
Pixel Pitch 10mm
Module Size 320mm×160mm
Module Resolution(pixels) 32*16
Panel Size 1280mm×960mm
Panel Resolution(pixels) 128×96
Pixel Configuration(RGB) 1R1G1B 3528
Pixel Density(pixels/m2) 10000
Brightness(cd/m2) 1500
Best Viewing Distance(m) 10
Max.Power Consumption(W/m2) 480
Drive Mode Constant driving 1/8
Wavelength R 620-625 G 520-525 B 470-475
Viewing Angle 140°(H)/60°(V)
Operating Temperature –20~50°C
Video Frame Rate(Hz) ≥60Hz
Display Refresh Rate(Hz) ≥600Hz
Grey Level(colors) 16.7million
Life Span ≥100,000 hours
Working Voltage 220V±15% OR 110V±15%
Video Signal Input RF,S_Video,RGB,RGBHV,YUV,YC,COMPOSITION
Control System LINSN OR DB-STAR

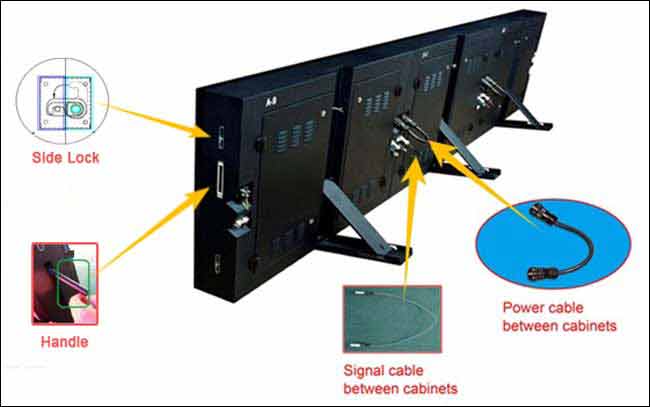

Structure

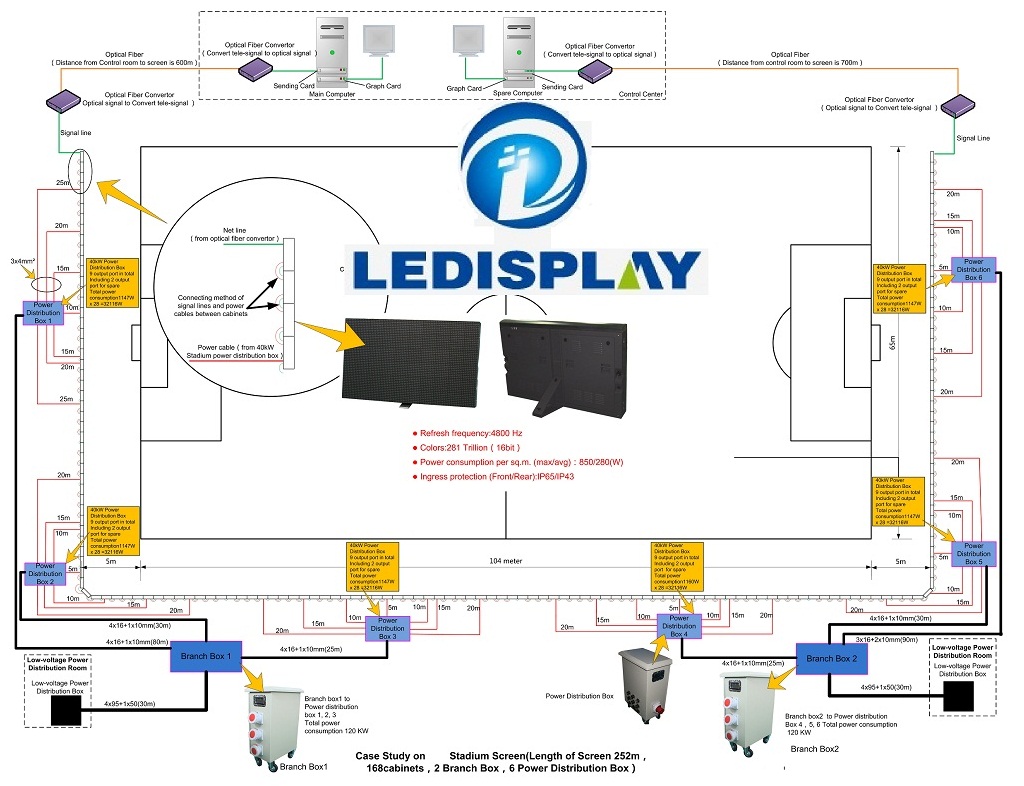

Project Case
