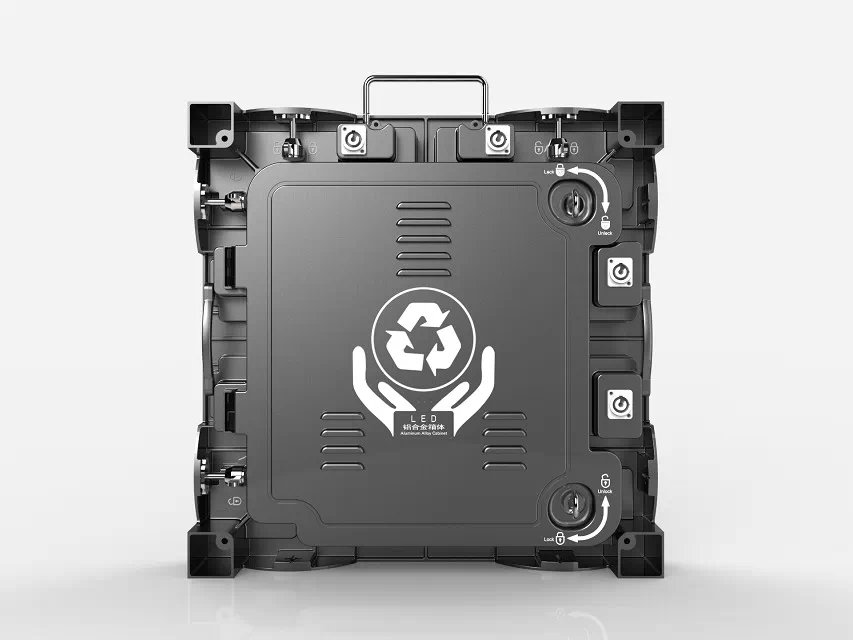

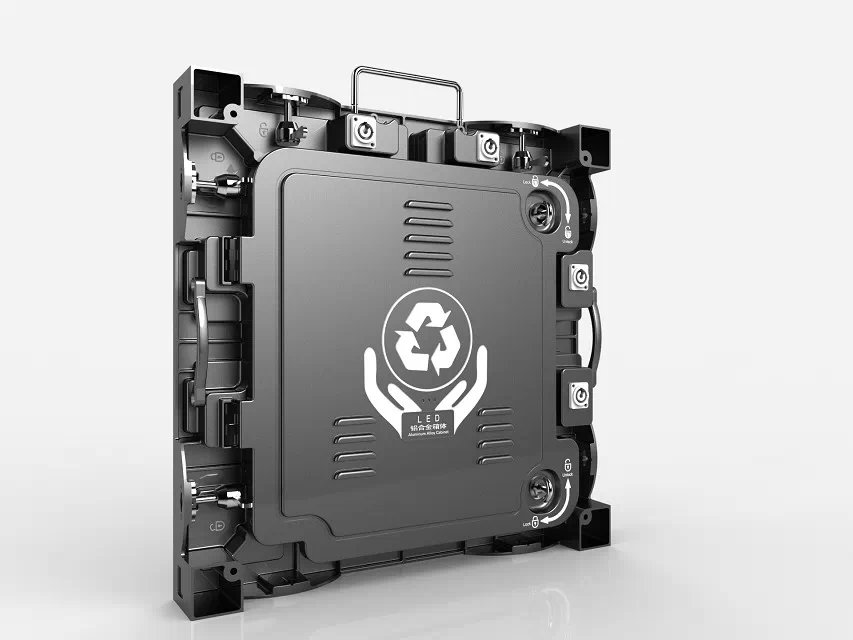

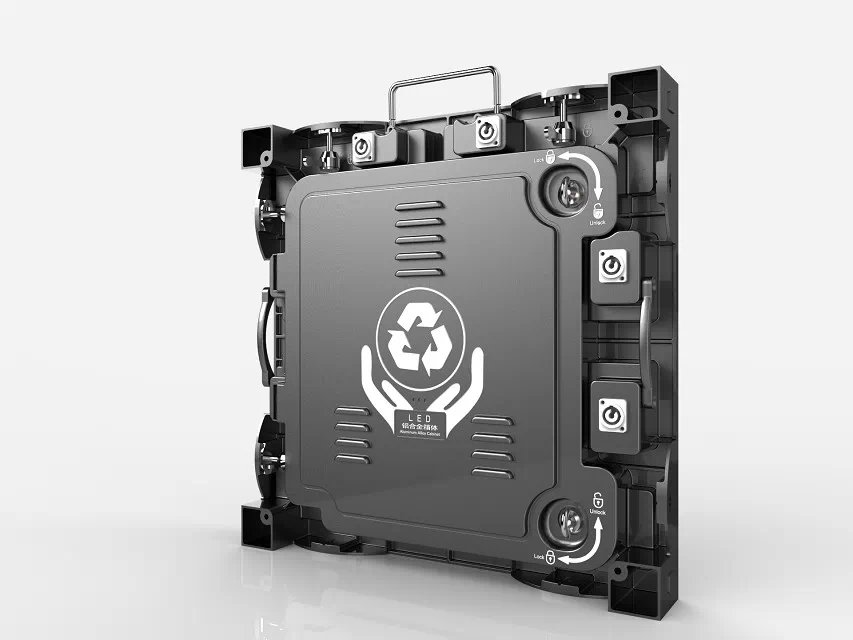

| Model | P4 die - casting aluminum LED indoor display for rental |
| Module pixels ( W * H ) | 64 dots *32 dots |
| Pixel pitch | 4 mm |
| Pixel density | 62,500 dots /sqm |
| Module size ( W * H ) | 256 mm (width ) * 128 mm ( height ) |
| Pixel configuration | 1 Red 1 Green 1 Blue |
| Drive mode | constant current driving 1 / 16 scan |
| LED lamp type | SMD2121 |
| Cabinet size(W*H*D) | 512mm * 512mm |
| Power consumption ( one cabinet ) | Max : 300 Watte / cabinet , Average : 100 Watte / cabinet |
| Inputting Voltage | 90 - 264 VAC; 47---63HZ |
| Net weight | 7.5 Kg / cabinet |
| Cabinet resolution | 128 * 128 |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness ( White balance ) | about 1,300 cd / sqm. |
| Operating temperature | -30 °C ---- + 60 °C |
| Operating humidity | 10% — 95% RH |
| Life time | ≥1 00,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤ 0.5mm Juncture |
| Frame frequency | 25 - 60 Hz / s |
| Refresh rate | ≥ 2000 Hz /s |
| Control distance | 100m ( without repeater ) , single mode fiber :20km , |
| multi mode fiber : 500m | |
| LED control system | LINSN , Dbstar ,Nova-star , ZDEC , Colorlight is selectable |
| Operating system | Windows Xp / Windows 7 / windows 8 / 8.1 / windows 10 |
| Protection grade | IP43 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | HDMI , PAL , NTSC , HDMI , BNC , TV , SDI |
