1. Indoor p6 led Display technical parameter
|
Pixel Density(pixel/㎡) |
27778 |
|
White Balance Brightness (cd/㎡) |
≥1800(adjustable) |
|
Max Power Consumption |
300W/cabinet |
|
Average Power Consumption |
150W/cabinet |
|
Color Temperature |
3200-9300(adjustable) |
|
View Angle |
Horizontal 110°；Vertical 80° |
|
Best Viewing Distance(m) |
6m—120m |
|
Display Work Method |
1/8 scan |
|
Digital Processing |
14 bit |
|
Gray Scale |
65536 levels per color |
|
Refresh Frequency (Hz) |
≥1200 |
|
Input Signal |
Video: PAL/NTSC Option: VGA , Video , DVD,TV, |
|
Waterproof |
No |
|
Working Temperature(ºC) |
-20～+45 |
|
Humidity(RH) |
10% - 80% |
|
Stored Temperature (ºC) |
-30～+60 |
|
Lifetime (50%Brightness)(Hours) |
≥100,000 |
|
Input Voltage(VAC) |
AC 220(or 110V) |
|
Input Power Frequency(Hertz) |
50 to 60 |
|
Data Connection |
Super CAT6 Cable or Fiber |
|
Operating System |
Windows(98/2000/XP/Vista) |
|
Blind Spot Rate |
＜0.00001 |
|
Control Distance |
CAT6 cable:150 meters; Single Fiber: Up To 10 Kilometers |
|
Panel Input Format (With Video Processor) |
VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV |
|
Earth Leakage Current(mA) |
＜2 |
|
Pixel Configuration |
SMD3528 |
Pixel Pitch | 6 mm |
| Module Resolution |
48x48 |
Module Size(W*H) |
288mm x 288mm |
|
Weigth Per Module |
0.65kg |
Max Power Consumption |
50w |

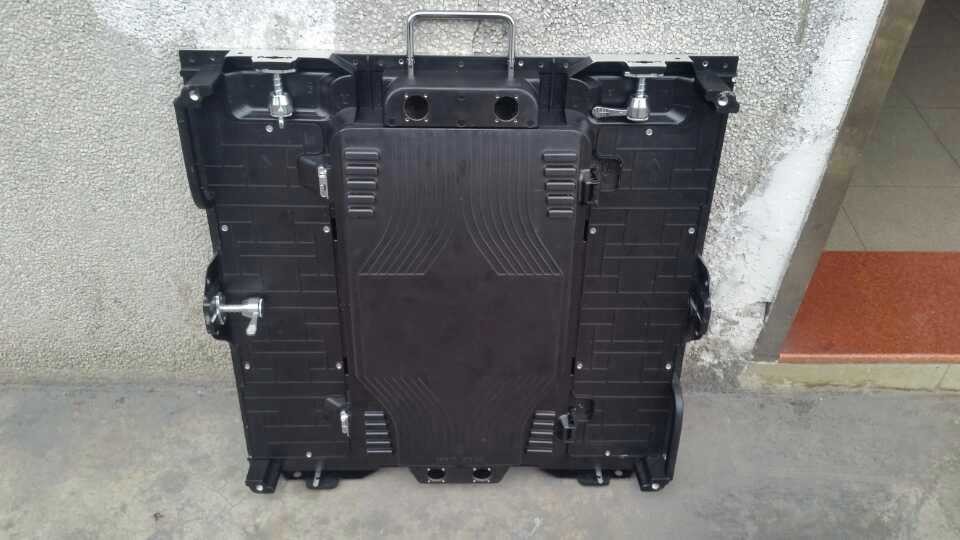

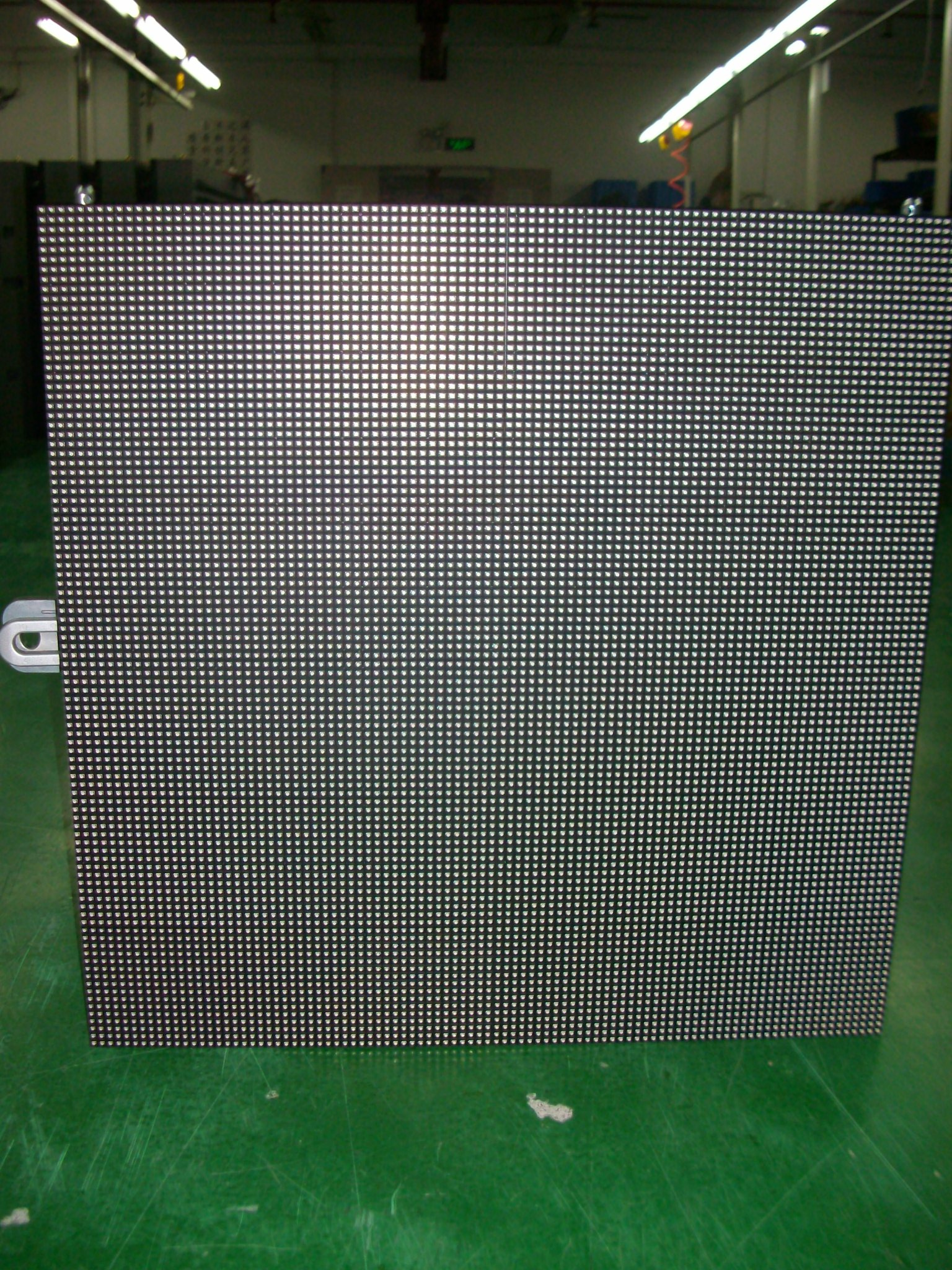

3. Indoor LED Display Cabinet
|

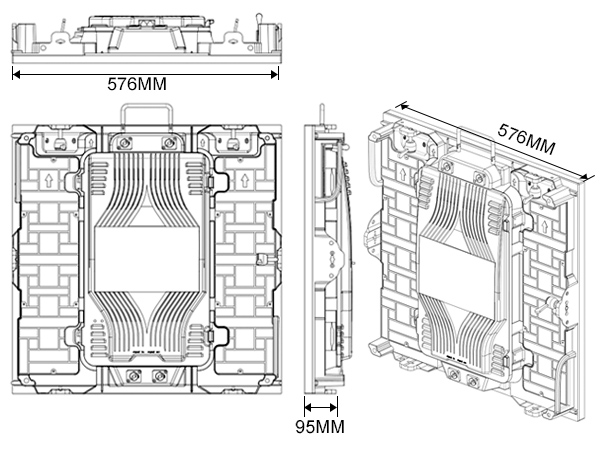

Cabinet Size(W*H) |
576mm × 576mm |
Module Qty |
4 pcs |
|
Cabinet Resolution |
96 x 96 |
Cabinet Area |
0.332㎡ |
|
Weight Of One Cabinet |
9.4 kg |
Cabinet Pixel |
27778 |
|
Cabinet Flatness |
＜0.2/㎡ |
Cabinet Material |
Die Casting Cabinet |
