| LED Lamp | |
| Type | SMD2121 black body |
| Brand | Epistar |
| Arrangement | 1R1G1B |
| Chip parameters | Red (620-625nm) IV:(250-300mcd) |
| Chip parameters | Green (520-525nm) IV:(450-550mcd) |
| Chip parameters | Blue (470-475nm) IV:(100-120mcd) |
| LED Module | |
| Pixel Pitch | 3mm |
| Module Size | 192×96mm |
| Module Resolution | 64×32=2048(Dots) |
| Module Weight | 0.3kg |

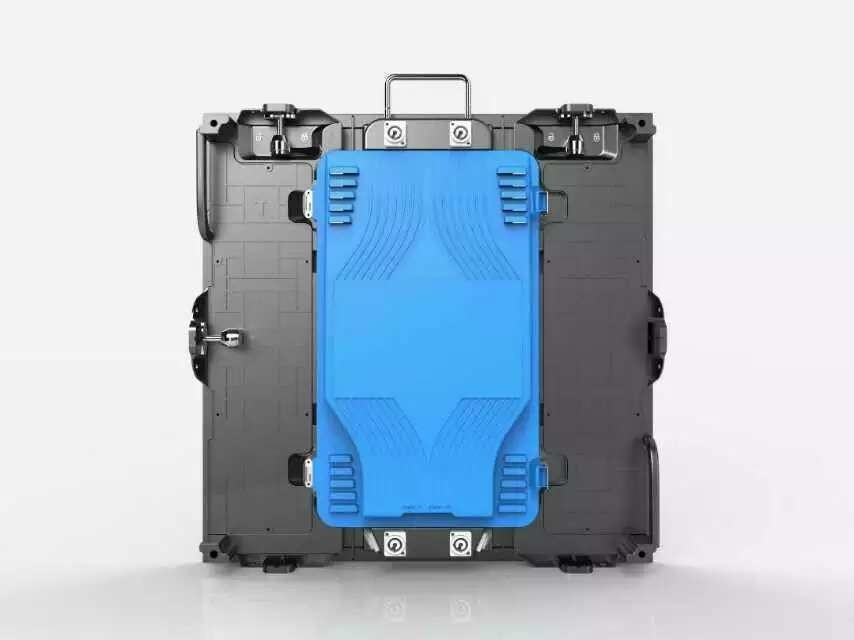

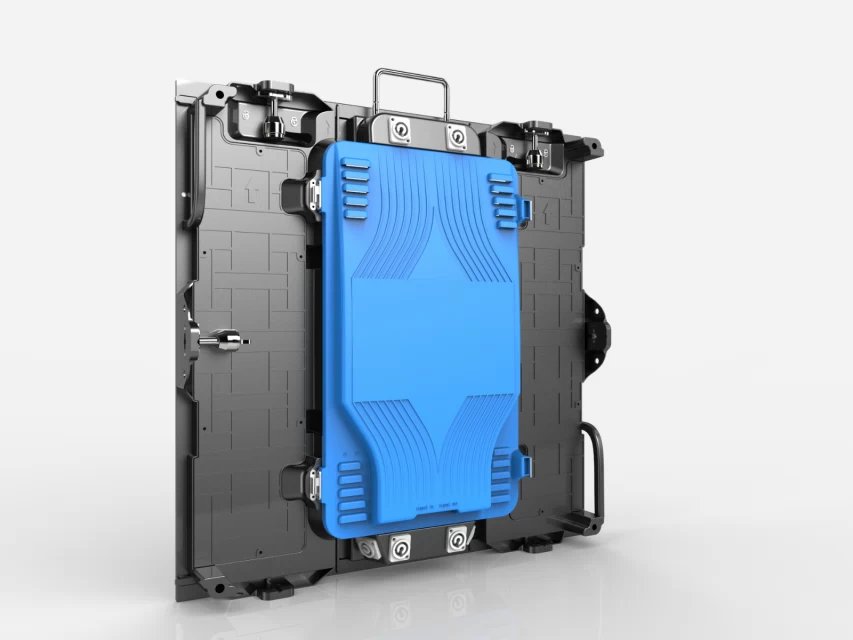

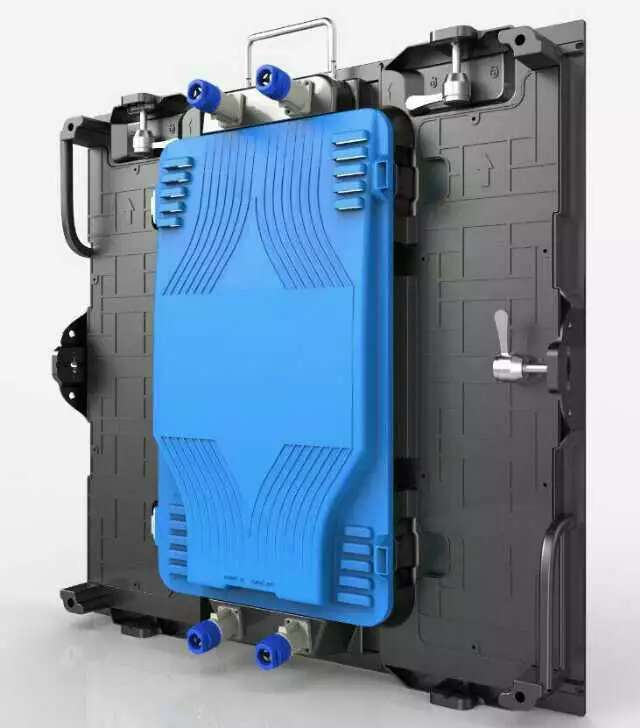

| LED Cabinet | |
| Pixel Density | 111111 Dots/sqm |
| Frame Frequency | no less than 60 frame/sec |
| Cabinet Resolution | 192×192=36864(Dots) |
| Input Voltage | AC110-220V±10%, 50/60Hz |

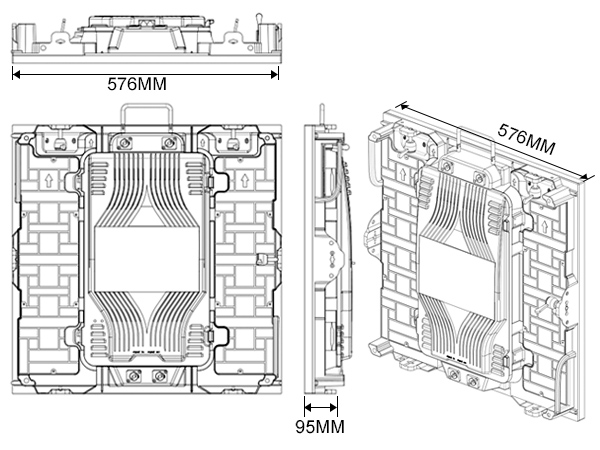

| Cabinet Dimension(W*H*D) | 576×576×95mm |
| Output Voltage | DC-5V, 40A/60A/80A |
| Module Quanty /Cabinet | 3×6=18(Pcs) |
| Grey Scale Levels | 16bit |
| Cabinets Material | Aluminum-magnesium alloy Cabinet |
| Color Processing | R(1024)×G(1024)×B(1024) |
| Cabinet Weight | 10kg |
| Brightness Adjustment |
256 color levels, can be adjusted manually and automatically optional |
| Brightness | >1500cd/sqm |
| MTBF( mean time between failures) | 5000 hours |
| Viewing Angle | 140(Horizontal), 140(Vertical) |
| Life-span | 100, 000 hours |
| Nearest Viewing Distance | 6m |
| Protection Level(front/back) | IP31/IP54 |
| Power Consumption (Max) | 1200 w/sqm |
| Malfunction Dot Rate | less than 0.0001 |
| Power Consumption (Average) | 300 w/sqm |
| Working Temperature | -15OC-50OC |
| Display Function | Text, Graphics, Video |
| Humidity | 15%-85% |
| Refresh Rate | >1000Hz |
| Drive Mode/Driver Position | Constant driving 1/16 Scan, Combined diver board |
| Control System | |
| Control Mode | Synchronization/Asynchronization |
| Input Signal | AVI/MPG/MPEG/TXT.etc |
| Control System | Sending Card, Receiving Card, Receiving HUB |
| PC Operating System | Microsoft Windows 7, XP and Vista |
| Software | LED Studio ( linsn ) |
| Communication Type | Net cable; 3G, WIFI(Sold separately) |
| Language |
Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic |
| Certificate | CE, ROHS, FCC, ISO9001, TUV |
| Control Card Input | DVI, USB; RJ45, HDMI(Sold separately) |
