| LED Module | |
| Pixel Pitch | 3.91mm |
| Module Size | 250×250mm |
| Module Resolution | 64×64=4096(Dots) |
| Module Weight | 0.55kg |
| LED Cabinet | |
| Pixel Density | 65410 Dots/sqm |
| Frame Frequency | no less than 60 frame/sec |
| Cabinet Resolution | 128×128=16384(Dots) |
| Input Voltage | AC110-220V±10%, 50/60Hz |

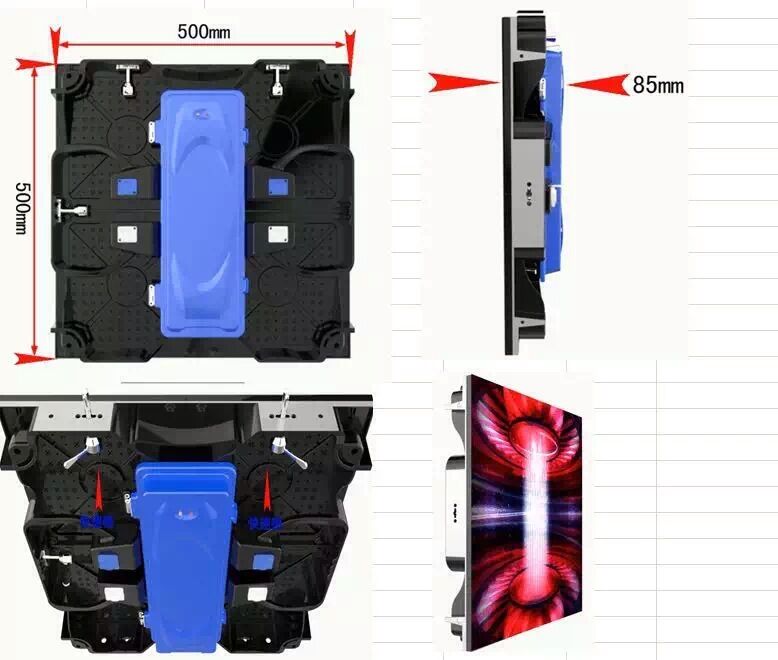

| Cabinet Dimension(W*H*D) | 500×500×85mm |
| Output Voltage | DC-5V, 40A/60A/80A |
| Module Quanty /Cabinet | 2×2=4(Pcs) |
| Grey Scale Levels | 16bit |
| Cabinets Material | Aluminum-magnesium alloy Cabinet |
| Color Processing | R(1024)×G(1024)×B(1024) |
| Cabinet Weight | 5kg |
| Brightness Adjustment | 256 color levels, can be adjusted manually and automatically optional |
| Brightness | >1500cd/sqm |
| MTBF( mean time between failures) | 5000 hours |
| Viewing Angle | 140(Horizontal), 140(Vertical) |
| Life-span | 100, 000 hours |
| Nearest Viewing Distance | 4m |
| Protection Level(front/back) | IP43/IP54 |
| Power Consumption (Max) | 1000 w/sqm |
| Malfunction Dot Rate | less than 0.0001 |
| Power Consumption (Average) | 300 w/sqm |
| Working Temperature | -15OC-50OC |
| Display Function | Text, Graphics, Video |
| Humidity | 15%-85% |
| Refresh Rate | >2000Hz |
| Drive Mode/Driver Position | Constant driving 1/16 Scan, Combined diver board |
| Control System | |
| Control Mode | Synchronization/Asynchronization |
| Input Signal | AVI/MPG/MPEG/TXT.etc |
| Control System | Sending Card, Receiving Card, Receiving HUB |
| PC Operating System | Microsoft Windows 7, XP and Vista |
| Software | LED Studio ( HSTV-linsn ) |
| Communication Type | Net cable; 3G, WIFI(Sold separately) |
| Language | Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic |
| Certificate | CE, ROHS, FCC, ISO9001 |
| Control Card Input | DVI, USB; RJ45, HDMI(Sold separately) |
