Fixed Outdoor LED display
300×213

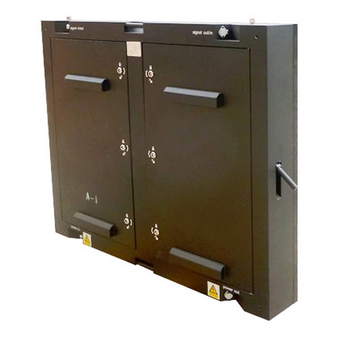

SMD Outdoor P16 High Definition LED Display for Fixed instal
  PDF:
Jump to :
Features
Top
1. SMD 3-in-1 technology allows for outdoor activities LED HD display with a broader viewing angle.
2. Using more reliable integrated packaging technology.
3. Vivid color performance, full-screen color and brightness to achieve a high degree of consistency.
4. Horizontal and vertical viewing angles up to 140 degrees.
5. High brightness SMD for outdoor solutions, protection grade IP 65, brightness up to 6000 cd / sq.m.
Specification
Top
Pixel Pitch 16 mm
Pixel Density(m²) 3906
Pixel Composition 3-in-1 SMD

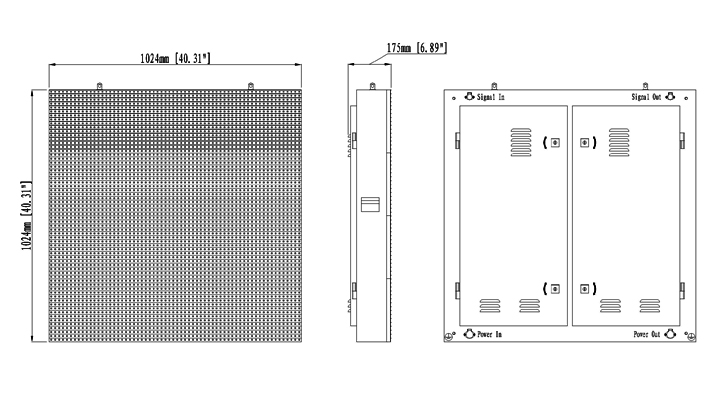

1024 mm*1024 mm*175 mm
Cabinet Resolution 64*64= 4096
Number of Modules(One Cabinet) 4*8= 32
Cabinet Material Iron
Number of Power(One Cabinet) 5 V/40 A/8
Cabinet Net Weight 45 kg/Sq. m.
Cabinet Gross Weight 49 kg/Sq. m.
Package Size 1104 mm*1204 mm*450 mm
Red SMD 5050; 625 nm, 900 mcd
SMD 5050; 525 nm, 1900 mcd
Blue SMD 5050; 465 nm, 450 mcd
Module Resolution 16*8
Module Size 256*256*25（mm*mm*mm）
Module Weight 0.38 kg
5 V, 36 W
Brightness 6500 cd /Sq. m.
Gray Level 4096
Color 16700000
H: 140°, V: 140°
The Best Viewing Distance 16 m~200 m
Static; Real
Refresh Rate (Max) 4000 Hz
Input Voltage 110 V/60 Hz, 220 V/50 Hz;
Max Power Consumption 1300 W/Sq. m.
780 W/Sq. m.
Screen Lifetime 50000 h
Operating Temperature -20°C~+50°C

Operating Humidity Range 10%RH ~ 90%RH
Front Ingress Protection Index IP 65
Back Ingress Protection Index IP 54

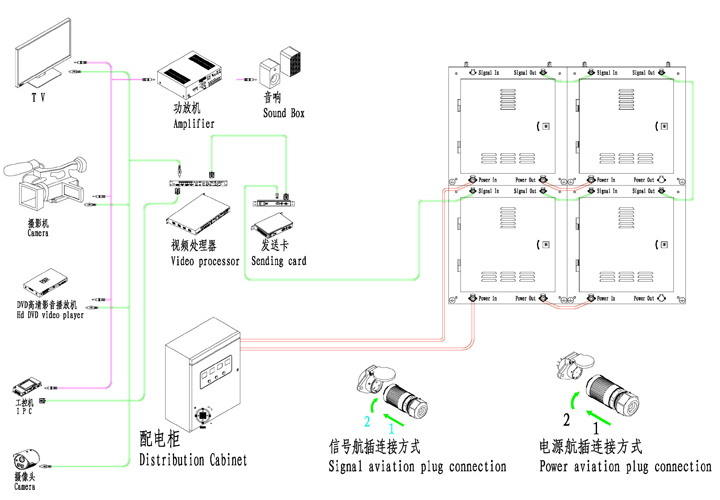

Structure
Top



Project Case
Top
