Fixed Outdoor LED display
300×213

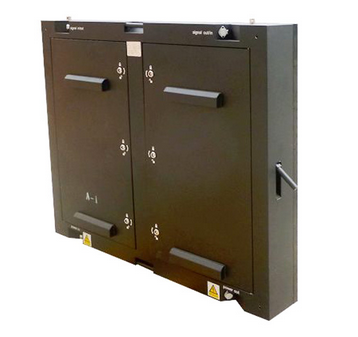

SMD Outdoor P10 High Definition LED Display for Fixed instal
  PDF:
Jump to :
Features
Top
1. SMD 3-in-1 technology allows for outdoor activities LED HD display with a broader viewing angle.
2. Using more reliable integrated packaging technology.
3. Vivid color performance, full-screen color and brightness to achieve a high degree of consistency.
4. Horizontal and vertical viewing angles up to 140 degrees.
5. High brightness SMD for outdoor solutions, protection grade IP 65, brightness up to 6000 cd / sq.m.
Specification
Top
Pixel Pitch 10 mm
Pixel Density(m²) 10000
Pixel Composition 3-in-1 SMD
Cabinet Size 960 mm*960 mm*175 mm
Cabinet Resolution 96*96 = 9216
Number of Modules(One Cabinet) 3*3= 9
Cabinet Material Iron
Number of Power(One Cabinet) 5 V/60 A/4
Cabinet Net Weight 45 kg/Sq. m.
Cabinet Gross Weight 49 kg/Sq. m.
Package Size 1040 mm*1140 mm*450 mm
Red SMD 3535; 625 nm, 900 mcd
Green SMD 3535; 525 nm, 1800mcd
Blue SMD 3535; 465 nm, 550 mcd
Module Resolution 32*32
Module Size 320*320*18(mm*mm*mm)
Module Weight 1.11 kg
Power Consumption (Single Module) 5 V, 85 W
Brightness 6000 cd /Sq. m.
Gray Level 4096
Color 16700000
The Best Viewing Angle H: 140°, V: 140°
The Best Viewing Distance 10 m~200 m
Scan Mode 1/4; Real
Refresh Rate (Max) 4000 Hz
Input Voltage 110 V/60 Hz, 220 V/50 Hz;
Max Power Consumption 832 W/Sq. m.
Average Power Consumption 500 W/Sq. m.
Lifespan 50000 h
Operating Temperature -20°C~+50°C
Operating Humidity Range 10%RH ~ 90%RH
Front IP IP 65
Back IP IP 54

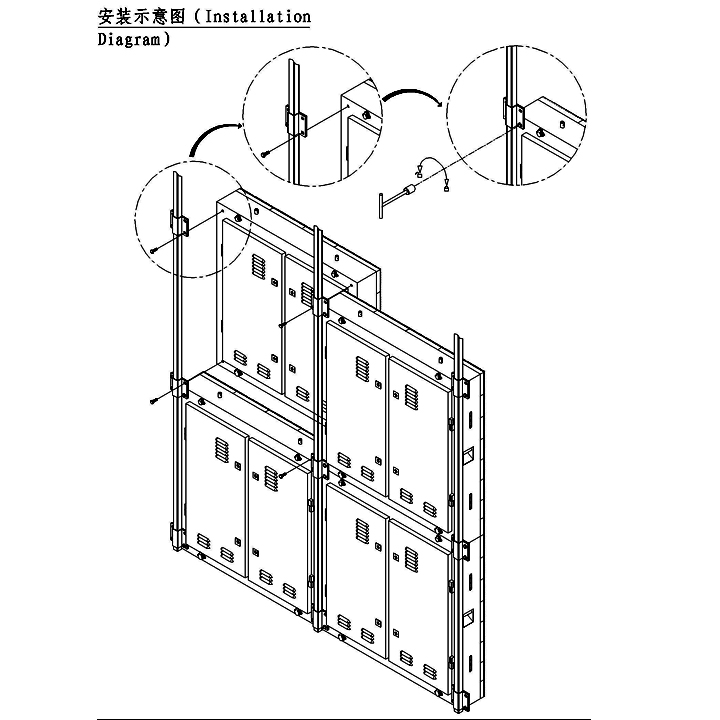

Structure
