| Outdoor LED Screen P5 3in1 SMD | |
| Pixel Pitch | 5mm |
| Working Voltage | AC220V±10%; AC110V±10% |
| Power Consumption | Max 950W/sqm |
| Average 380W/sqm | |
| LED Brand | Epistar LED Chips |
| Maximum Brightness | > 5,500 cd/m² |
| Pixel Configuration | 1R1G1B |
| Pixel Size | 5.0 mm |
| Pixel Density | 40,000 Pixels/m² |
| Drive Mode | 1/8 Scanning |
| Grade Level | RGB 4096 grade/each |
| Best Viewing Distance | <3m ~ >150m |
| (10ft ~ >492ft) | |
| Viewing Angle | Horizontally >160° / Vertically >130° |
| Screen Lifetime | ≥ 100,000 hours |
| Driving IC | MBI5020 |
| Refresh Frequency | ≥ 1200HZ/s |
| (1,000+ HZ/s available) | |
| Change Frame Frequency | ≥ 60Hz |
| Protection Level | IP65/IP54 |

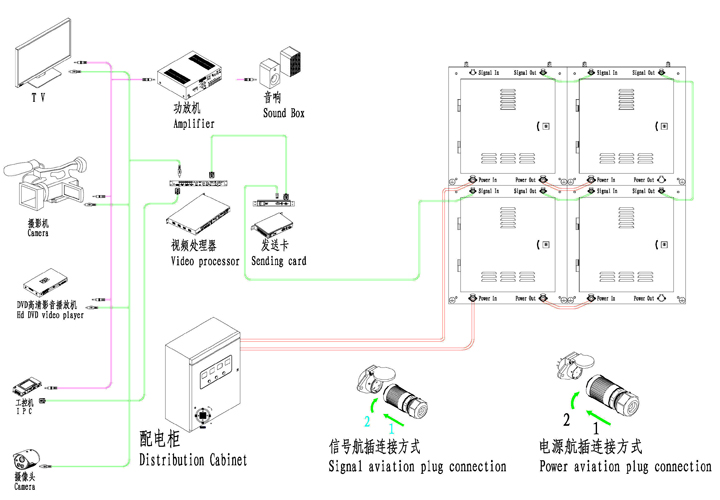

| Control System ¹ | Simple LED Video Control System |
| or Advanced LED Video Processor | |
| Ambient Temperature | -10°C ~ +45°C |
| (-14°F ~ 113°F) | |
| Relative Humidity | 10%~90% |
| Screen Weight | Steel: ≤ 45Kg/SQM |
| Input Signal | RF S-Video RGB RGBHV |
| YUVYC, etc. | |
| Brightness Adjustment ² | 256 levels of each color (RGB) can be adjusted manually and |
| 8 levels of each color can be adjusted automatically. | |
| LED Module Size | 160mm x 160mm |

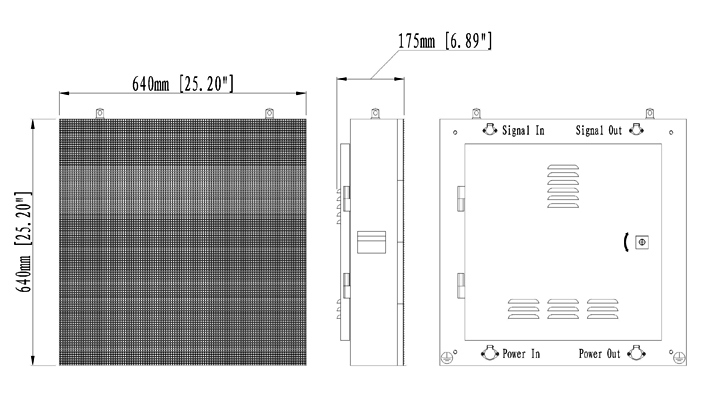

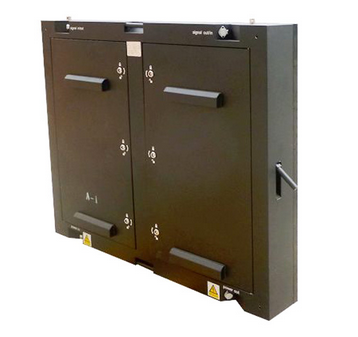

| LED Cabinet Size | 640mm X 640mm (25″ X 25″) |
| (128 pixels x 128pixels) | |
| Cabinet Material | Steel or Aluminum |
| Package Material | Wooden Case |
| Warranty ³ | 3 Years |
