Fixed Outdoor LED display
300×213

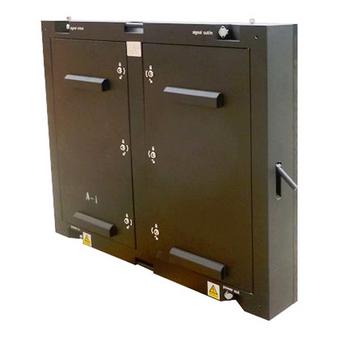

DIP Outdoor Fixed P20 Outdoor LED Display
  PDF:
Jump to :
Features
Top
This is a product particularly designed for rental applications thanks to its excellent balancing between cost and resolution. If fact, P20 is more used in rental applications than any other pitches.
It has some great features as:
●Highest resolution for any outdoor applications;
●Energy-efficient version is available;
●Brightness/cost adjustability;
It's good for :
●General rental display in all occasions;
●Automobile trailer display;
●Fixed installation for those outdoor advertising purpose with short viewing distances;
Specification
Top
Pixel Pitch 20mm
Type DIP546
Arrangement 1R1G1B
Brand Epistar
Chip parameters Red (625-628nm) IV:(1000-1200mcd)
Chip parameters Green (523-525nm) IV:(2000-2500mcd)
Chip parameters Blue ( 470-472nm) IV:(500-650mcd)
Module Resolution 16×8=128(Dots)
Module Size 320×160mm
Module Weight 0.62kg
Pixel Density 2500 Dots/sqm
Cabinet Resolution 64×64=4096(Dots)
Cabinet Dimension(W*H*D) 1280×960×185mm
Module Quanty /Cabinet 4×6=24(Pcs)
Cabinets Material Steel
Cabinet Weight 50kg
Brightness >6500cd/sqm
Viewing Angle 110(Horizontal),55(Vertical)
Nearest Viewing Distance 23m
Power Consumption (Max) 800 w/sqm
Power Consumption (Average) 250 w/sqm
Display Function Text,Graphics,Video
Refresh Rate >800Hz
Drive Mode/Driver Position Static Combined driver board
Frame Frequency no less than 60 frame/sec
Input Voltage AC110-220V±10%, 50/60Hz
Output Voltage DC-5V,40A/60A/80A
Grey Scale Levels 16bit
Color Processing R(1024)×G(1024)×B(1024)
Brightness Adjustment 256 color levels, can be adjusted manually and
 automatically optional
MTBF( mean time between failures) 5000 hours
Life-span 100,000 hours
Protection Level(front/back) IP66/IP54
Malfunction Dot Rate less than 0.0001
Working Temperature -30OC~50OC
Humidity 15%~85%
Control Mode Synchronization/Asynchronization
Control System Sending Card, Receiving Card, Receiving HUB
Software LED Studio ( linsn )
Language Chinese, Traditional Chinese, English,
 French, Japanese,
 Russian, Thai, Spanish, Polish, Italian,
Portuguese, Turkish,
Dutch, Greek, Bulgarian, Romanian, Arabic
Control Card Input DVI, USB; RJ45, HDMI(Sold separately)
Input Signal AVI/MPG/MPEG/TXT.etc
PC Operating System Microsoft Windows 7, XP and Vista
Communication Type Net cable; 3G, WIFI(Sold separately)
Certificate CE, ROHS

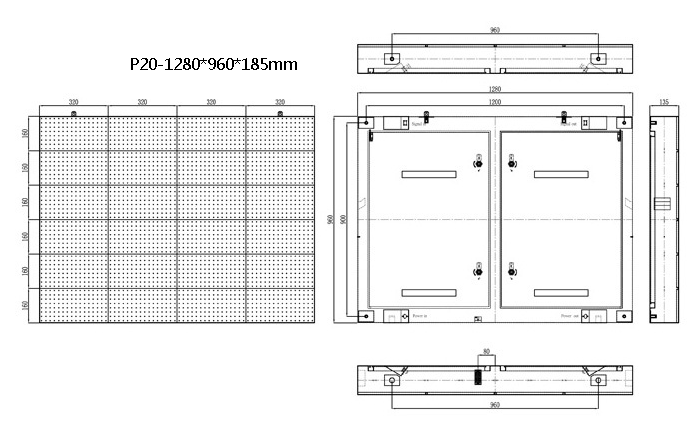

Structure
