Indoor LED Curtain
300×213
Stage rental P6.9 Curtain LED Display
  PDF:
Jump to :
Features
Top
Super-slim and high transparency design, aluminum alloy cabinet, made the screen extremely light and also a good-looking;
Perfect distribution of light, allows you always get the best vision in spite of the viewing angle changing;
Special mask design, provide better protection for the LED lamp and better shading for the lights;
Internally installed power supplier;
High ingress protection, apply for outdoor using and have longer life span;
Good looking cabinet, quick for installation, and also easy to transport.
Specification
Top
Model                   LEDisplay-P6.9
Pixel Pitch                          6.9 mm
LED Type                         SMD 3in1
Moudle Resolution                       72*36pixels
Moudle Size                     500mmX250mm
Pixels Density                     20738pixels/㎡
The Best Viewing Distance                              7m
Brightness            ≥4000 CD/㎡
           ≥1200 CD/㎡
Viewing angle (H/V):                      140/140 deg.
Cabinet Resolution(W*L)                          72 X 144
Cabinet size(W*L*H)(mm)                        500X500X55
                       500X1000X55
Cabinet material                        Aluminum
Cabinet Weight                            12KG
Grey Level                         ≥65536
Refresh frequency:              ≥1200HZ
Operating Temperature
             -20℃——50℃
Storage Temperature
             -35℃——85℃
Input voltage (AC):                      AC110V/220V
Power consumption per sq.m. (max/avg):                       520W/260W
Operating humidity                       10%——95%
Lifespan                      100,000hours
Ingress protection (Front/Rear)                        IP65/IP54

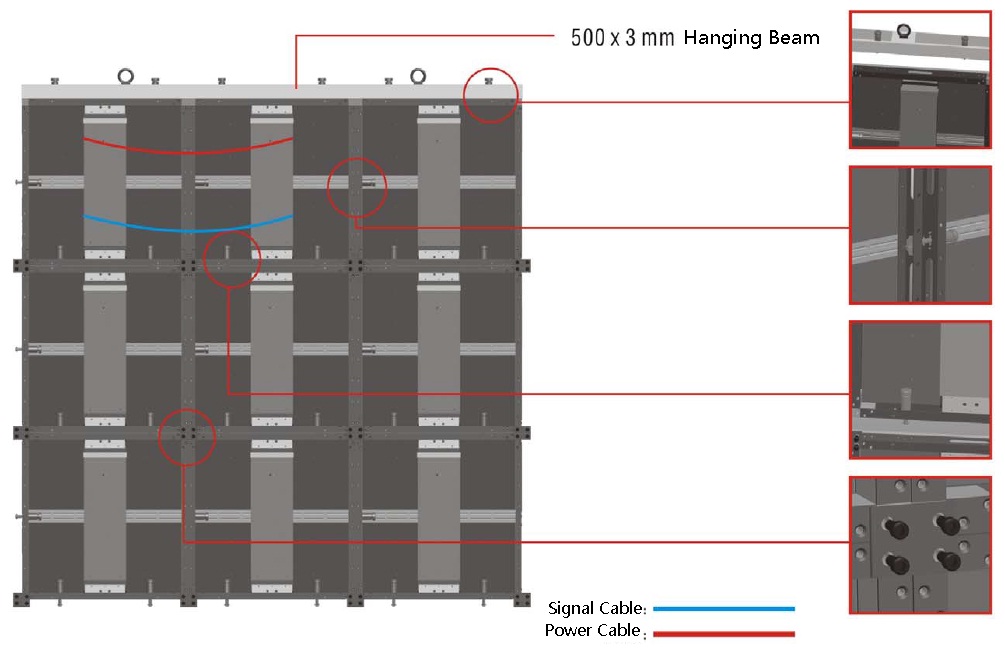

Structure
Top
Project Case
Top
